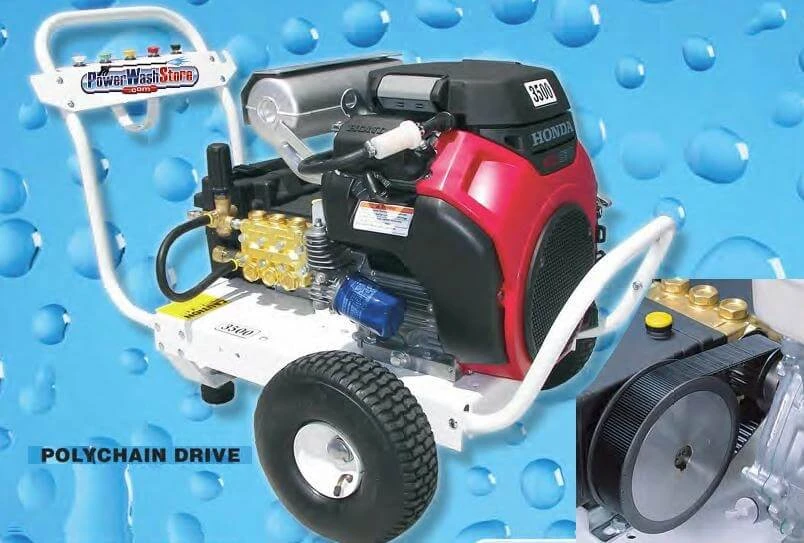

Pressure Pro Pro-Max HP Series Polychain Drive B5550HGEA511

Pressure-Pro – Pro-Max HP Series 5.5@5000 #B5550HGEA511

Rated at 5.5 GPM @ 5000 psi. GX690 Honda engine, General Pump, complete with 20+ amp charging system – Hot Box Ready!

Standard Features

• Aircraft-grade aluminum frame with dual handles has no welds to fail
• Lifetime warranty on frame
• Easy access tip hose and gun holder on the handle
• EZ-Start feature
• Epoxy powder coated frame finish
• Gates 10,000-hour poly chain cogged belt with a 2-year warranty
• 50 mesh inlet water filter
• Adjustable trapped pressure unloader
• Low oil protection shutdown switch
• Engine oil drain hose for easy, no-mess maintenance
• Oversize pneumatic tires
• Dual spring cushioned shock-absorbing foot pads
• 3/4″ cold-rolled solid steel axle
• Honda commercial-grade gasoline engine
• Low-speed belt-driven General Pump
• Thermo-sensor to prevents pump overheating during bypass mode
• Includes 6-gallon remote poly fuel tank
• Electric start
• Marine-grade battery box with battery

Standard Accessories

• Spray gun with an insulated wand and quick connects
• 50′ length of a high-pressure hose with quick connects
• Maxi-Flo 20 % chemical injector with quick connects
• 4 color-coded quick connect spray nozzles: 0°, 15°, 25°, 40°
• 1 color-coded quick connect chemical nozzle

**Skid mount frame option available

Pro-Max Series Gas, Polychain Specs
Part#	GPM	PSI	Model/Brand	Pump
B1520KCEA125	15.0	2000	CH750 Kohler*	CAT
B1228KGEA105	12.0	2800	CH750 Kohler*	GP
B8030HGEA406	8.0	3000	GX630 Honda*	GP
B1030KGEA390	10.8	3000	CH750 Kohler*	GP
B4035HCP407	4.0	3500	GX390 Honda	CAT
B4035HG403	4.0	3500	GX390 Honda	HP
B5535HAEA409	5.5	3500	GX630 Honda*	AR
B5535HGEA403	5.5	3500	GX630 Honda*	HP
B8035HAEA406	8.0	3500	GX630 Honda*	AR
B8035HGEA406	8.0	3500	GX630 Honda*	GP
B4040HG403	4.0	4000	GX390 Honda	HP
B5540HAEA409	5.5	4000	GX390 Honda	AR
B5540HGEA403	5.5	4000	GX390 Honda	GP
