Pressure Pro 115v HotLink Hot Water Generator CPHL5E1
Original price was: $343.00.$97.99Current price is: $97.99.
- Online assistance, always just a message away.
- Worry-Free Shopping with Safe Payments
- Sustainable materials, for a better tomorrow.
- Online customer care, always here for you.
Similar Pressure Pro Units:
-
SM Series Hot Water Portable 3.5@4000 #SM40004HG
-
SC Series Hot Water Skid 8.7/2@3000 #SC30009KAF
-
SM Series Hot Water Portable 3.0@3000 #SM30003HH
-
HN Series Stationary Hot Water 5.5@3500 #HN35006E3G

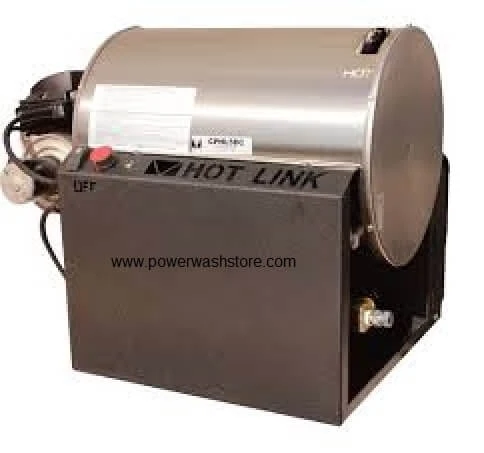

Pressure Pro 115v Hot Link Hot Water Generator
115v, 1ph, 15amp (plug into a wall outlet or 2000w generator)
Would you like your cold water pressure washer to be capable of spraying hot water? Simply connect the Hot Link to your existing cold water pressure washer (up to 4350psi, up to 5gpm) with the included 4′ connection hose and you have the hot water you need to wash away any grease and grime efficiently. HotLink water generators heat the water from your existing cold water pressure washer. The HotLink uses a diesel-fired burner and schedule 80 steel pipe coil with ceramic insulation to efficiently provide 200°F water.
They are Diesel fired and use a power source of 120 volts. A 12v model is available. This generator can handle water flows up to 6 gallons per minute and pressures up to 3500psi. The HotLink is compact and rugged with a powder-coated steel base/frame and stainless steel enclosure.
Dimensions: 29″L x 22″W x 22″H
*FREIGHT NOT INCLUDED
Hot Link Hot Water Generator | |
| MODEL NUMBER | CPHL5DC |
|---|---|
| PRESSURE | Connect to any cold water pressure washer up to 4350psi (300bar) |
| FLOW CAPACITY | Use your existing pressure washer, up to 5 gpm |
| 4gpm @ 100°F heat rise, up to 200°F | |
| VOLTS/AMPS | 12v DC – Connect to battery on pressure washer (requires 14amp charging system) |
| CONTROLS/SWITCHES | Adjustable thermostat, lighted on/off switch |
| PRESSURE CONTROL | Safety features include flow switch, pressure relief valve and burst disc |
| PRESSURE HOSE | Not included – your gun and hose must be rated for at least 200°F |
| GUN/WAND | Not included – your gun and hose must be rated for at least 200°F |
| JUMPER HOSE | Includes 48”, 5000psi, 250°F hose to connect Hot Link to existing pressure washer |
| BURNER COIL | ½” sch. 80 steel pipe, cold-rolled 4-spiral, ceramic insulation |
| CONSTRUCTION | Rugged, powder-coated base frame, stainless coil wrap, and double-wall coil end caps |
| BURNER FUEL/CAP | Diesel #2-, 3-gallon for burner |
| 274,400 Btu input | |
| MOUNTING | 4) Holes to bolt down to your truck or trailer |
| WEIGHT/DIMENSIONS | 180#, 29”l x 22”w x 22”h |
