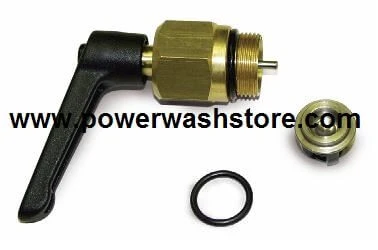

GENERAL PUMP JETTER PULSE VALVE – TT, TC SERIES

GENERAL PUMP JETTER PULSE VALVE – TT, TC SERIES #4742

• Allows standard triplex pump to generate flow pulsations on-demand to improve nozzle movement and cleaning power in sewer cleaning applications
• Simple operation allows both full-flow and pulsation modes
• The large easy-to-grasp handle allows gloved operation
• Designed and made in the USA
• Easy installation – simply replace middle valve cap and valve on any TT, TC Series pump

Replaces valve cap to create pulsation action, to remove nozzle in pipe cleaning applications. For the TT pump install in the center port of the pump on the inlet.

Turn the handle to “lockdown” the check valve.

This will cause the pump to pulsate and the hose will pull itself through the pipe.

Jetter Valve for TT & TC Series Pumps
Part #	100315
Pumps	TT & TC Series
Maximum Pressure	3,500 PSI
Dimensions	1.25 in. Hex 1.5 in. from the center to handle edge 2.5 in. from the manifold to valve top
Weight	0.5 lbs.
Materials	Brass Buna-N Teflon Stainless Steel
